Product features:

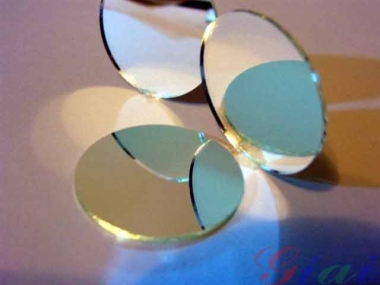

Narrow band filter is a major role in light of a specific wavelength through, let the other wavelengths of the light reflection ( or attenuation) of optical components. Half wave width is usually controlled in 20nm or smaller, ultraviolet, visible light, near infrared wavelength, far infrared wave band . My company's narrow bandpass filter using multilayer epidural by ion assisted deposition of nanometer materials and high vacuum evaporation coating, good compactness, high imaging definition.
Optical indicator:
The center wavelength: 810 ± 7Nm
Transmittance: T=80%
Bandwidth: 24nm
Band 300nm-780nm
840nm-1100nm
The cutoff rate: T<0.1%
Advantage.
Plated with hard, long service life,
Wavelength accuracy
Ion plating, low temperature drift
High penetration rate,
High cut-off depth
Application fields:
Fluorescence analyzer, enzyme mark instrument, cable television to upgrade equipment, wireless transmission equipment, mobiles phones bar code scanning, infrared electronic whiteboard, infrared cameras, infrared touch screen, iris recognition, medical instrument, infrared ink recognition, red film recognition, face recognition sensor system. Handheld infrared laser rangefinder, laser range finder, optical instruments, medical equipment and testing apparatus.
